Resistance measurement

Background Information

Procedure for resistance measurement: * Set the measuring device to resistance measurement * Connect the resistance to be measured to the corresponding sockets on the measuring device (the measuring device sockets labeled COM and $\Omega$ * Read the measured value There are different types of resistance measurement: * direct resistance measurement * indirect resistance measurement The resistances can also be determined by measuring the current/voltage. Ohm's law: In an electrical circuit, the current increases with increasing voltage and decreases with increasing resistance.
$$ I=\frac{U}{R} $$

Experimental Tasks

Direct resistance measurement

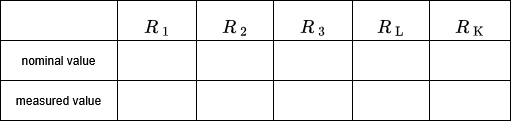

Determine the nominal and measured values of the resistance for $R_{\rm 1}$ (brown, green, orange), $R_{\rm 2}$ (yellow, violet, red), $R_{\rm 3}$ (red, violet, red) and the incandescent lamp $R_{\rm L}$. Also measure the approximate resistance $R_{\rm K}$ of your body from your right to your left hand.

How do you explain the deviation between $R_{\rm L,nominal}$ and $R_{\rm L,meas}$?
What consequences can $R_{\rm K}$ have?

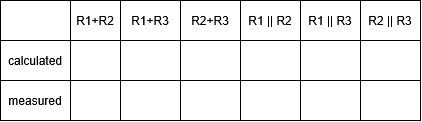

Now determine the series and parallel connections of resistors $R_{\rm 1}$, $R_{\rm 2}$ and $R_{\rm 3}$.
Specify the formulas used:
$R_{\rm serial}$ =
$R_{\rm parallel}$ (= $R_{\rm a}$ || $R_{\rm b}$) =

Indirect resistance measurement

Build the measuring circuit shown in figure 1 for each of the three resistors and set the voltage on the power supply to $~{\rm 12} ~{ V}$. Fig. 1: Indirect resistance measurement Measure $U_{\rm n}$ [V] and $I_{\rm n}$ [mA]. Calculate $R_{\rm n}$ [k$\Omega$] from these values.

Test Questions - Resistors
