2 Simple DC circuits

So far, only simple circuits consisting of a source and a load connected by wires have been considered.
In the following, more complicated circuit arrangements will be analyzed. These initially contain only one source, but several lines and many ohmic loads (cf. Abbildung 1).

2.1 Idealized Components

Every electrical circuit consists of three elements:

1. Consumers also called Loads (in German: Verbraucher or Last): consumers convert electrical energy into energy that is not purely electrical.
   e.g.
   1. into electrostatic energy (capacitor)
   2. into magnetostatic energy (magnet)
   3. into electromagnetic energy (LED, light bulb)
   4. into mechanical energy (loudspeaker, motor)
   5. into chemical energy (charging an accumulator)
2. Sources also called Generator (in German: Quellen): sources convert energy from another form of energy into electrical energy. (e.g. generator, battery, photovoltaic).
3. Wires also called Interconnections (in German Leitungen or Verbindungen): The wires of interconnection lines link consumers to sources.

These elements will be considered in more detail below.

Consumer

• The colloquial term 'consumer' in electrical engineering stands for an electrical consumer - i.e. a component that converts electrical energy into another form of energy.
• A resistor is often also referred to as a consumer. In addition to pure ohmic consumers, however, there are also ohmic-inductive consumers (e.g. coils in a motor) or ohmic-capacitive consumers (e.g. various power supplies using capacitors at the output). Correspondingly the equation „consumer is a resistor“ is wrong.
• Current-voltage characteristics (see Abbildung 2)
  • Current-voltage characteristics of a load always run through the origin, because without current there is no voltage, and vice versa.
  • Ohmic loads have a linear current-voltage characteristic which can be described by a single numerical value.
    The slope in the $U$-$I$-characteristic is the conductance: $I = G \cdot U = {{U}\over{R}}$

Sources

• Sources act as generators of electrical energy
• A distinction is made between ideal and real sources.
  The real sources are described in the following chapter „non-ideal_sources_and_two_terminal_networks“.

The ideal voltage source generates a defined constant output voltage $U_\rm s$ (in German often $U_\rm q$ for Quellenspannung). In order to maintain this voltage, it can supply any current. The current-voltage characteristic also represents this (see Abbildung 3).
The circuit symbol shows a circle with two terminals. In the circuit, the two terminals are short-circuited.
Another circuit symbol shows the negative terminal of the voltage source as a „thick minus symbol“, the positive terminal is drawn wider.

The ideal current source produces a defined constant output current $I_\rm s$ (in German often $I_\rm q$ for Quellenstrom). For this current to flow, any voltage can be applied to its terminals. The current-voltage characteristic also represents this (see Abbildung 4).
The circuit symbol shows again a circle with two connections. This time the two connections are left open in the circle and a line is drawn perpendicular to them.

Another Explanation of Ideal Sources

Wire Connection

• The ideal connection line is resistance-free and transmits current and voltage instantaneously.
• Real existing influences (e.g. voltage drop) of connections are considered via separately drawn components (e.g. ohmic resistance).

2.2 Reference-Arrow Systems, Sign Convention, and first Consideration of a DC Circuit

In the chapter 1. Preparation and Proportions the direction of conventional current and voltages has already been discussed. Unfortunately, with meshed networks it is often not clear ahead of the calculation in which direction the conventional sense of direction of all currents and voltages runs.

In Abbildung 5 such a meshed net is shown. In this circuit, a switch $S_1$ and a current $I_2$ are marked. Once the state of the switch is swapped, the direction of the current changes.

Sign and Arrow-Systems

For the direction of the arrows different conventions are available. Here (and quite often in Germany) the convention of power engineering is used. This convention is

Generator Reference Arrow System / Active Sign Convention

2.3 Nodes, Branches, and Loops

Electrical circuits typically have the structure of networks. Networks consist of two elementary structural elements:

1. Branches (German: Zweige): Connections between two nodes.
2. Node (German: Knoten): Connection „point“ of several branches.

Please note in the case of electrical circuits, we will use the following definition:

1. Branches contain at least one component.
2. Nodes connect more than two branches. Since the wire in a circuit diagram is an ideal conductor, all connected wires to a node are at the same voltage level. Therefore the node in the circuit diagram can also be spatially extended by the wires.

Sometimes there is a differentiation between „simple nodes“ (only connecting 2 branches) and „principal nodes“ (connecting more than 2 branches). We will in the following often only mark the connection of more than two branches with a node.

Branches in electrical networks are also called two-terminal networks. Their behavior is described by current-voltage characteristics and explained in more detail in the chapter non-ideal_sources_and_two_terminal_networks.

In addition, another term is to be explained:

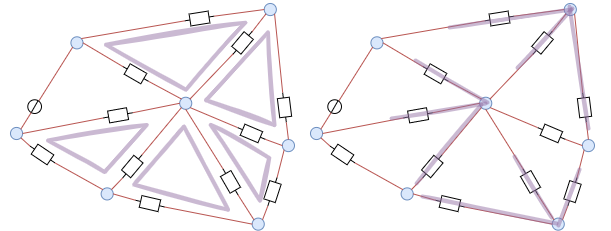

A loop is a closed path in the loop. This means that a loop begins and ends at the same node and runs over at least one further node.

Since a voltmeter can also be present as a component between two nodes, it is also possible to close a loop by a drawn voltage arrow (cf. $U_1$ in Abbildung 10).

A loop that does not contain other (smaller) loops is called a mesh.

Please keep in mind, that usually the entire behavior of networked circuits almost always changes when a change occurs in one branch or at one node. This is in contrast to other cause-effect relationships, but comparable to changes in other larger networks, e.g. a traffic jam in the road network, due to which other roads experience a higher load. For electrical engineering, this means that in the case of changing circuits, the focus is often on determining the interrelationships (formulas, current-voltage characteristics) and not on a single numerical value.

Reshaping Circuits

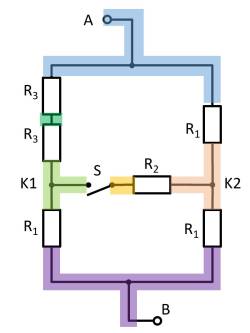

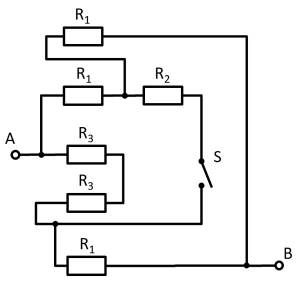

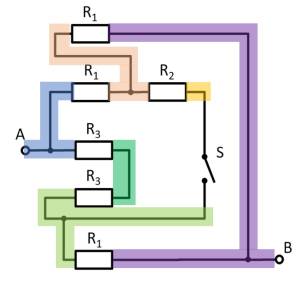

With the knowledge of nodes, branches, and meshes, circuits can be simplified. Circuits can be reshaped arbitrarily as long as all branches remain at the same nodes after reshaping The Abbildung 11 shows how such a transformation is possible.

For practical tasks, repeated trial and error can be useful. It is important to check afterward that the same components are connected to each node as before the transformation.

Further examples can be found in the following video

2.4 Kirchhoff's Circuit Laws

Kirchhoff's Current Law

Kirchhoff's current law (Kirchhoff's first law, Kirchhoff's nodal rule, in German: Knotensatz) formulates in the language of mathematics the experience that no charge „accumulations“ occur in electrical wires. This is of particular relevance at a network node (Abbildung 14). To formulate the equation at this node, the reference arrows of the currents are all set in the same way. That means: all point away from or towards the node.

Parallel circuit of resistors

From Kirchhoff's current law, the total resistance for resistors connected in parallel can be derived (Abbildung 15):

Since the same voltage $U_{ab}$ is dropped across all resistors, using Kirchhoff's current law:

$\large{{U_{ab}}\over{R_1}}+ {{U_{ab}}\over{R_2}}+ ... + {{U_{\rm ab}}\over{R_n}}= {{U_{\rm ab}}\over{R_{\rm eq}}}$

$\rightarrow \large{{{1}\over{R_1}}+ {{1}\over{R_2}}+ ... + {{1}\over{R_n}}= {{1}\over{R_{\rm eq}}} = \sum_{x=1}^{n} {{1}\over{R_x}}}$

Thus, for resistors connected in parallel, the equivalent conductance $G_{\rm eq}$ (German: Ersatzleitwert) is the sum of the individual conductances: $G_{\rm eq} = \sum_{x=1}^{n} {G_x}$

In general: the equivalent resistance of a parallel circuit is always smaller than the smallest resistance.

Especially for two parallel resistors $R_1$ and $R_2$ applies: $R_{\rm eq}= \large{{R_1 \cdot R_2}\over{R_1 + R_2}}$

Current divider

The current divider rule shows in which way an incoming current on a node will be divided into two outgoing branches. The rule states that the currents $I_1, ... I_n$ on parallel resistors $R_1, ... R_n$ behave just like their conductances $G_1, ... G_n$ through which the current flows.

$\large{{I_1}\over{I_{\rm res}} = {{G_1}\over{G_{\rm res}}}$

$\large{{I_1}\over{I_2}} = {{G_1}\over{G_2}}$

The rule also be derived from Kirchhoff's current law:

1. The voltage drop $U$ on parallel resistors $R_1, ... R_n$ is the same.
2. When $U_1 = U_2 = ... = U$, then the following equation is also true: $R_1 \cdot I_1 = R_2 \cdot I_2 = ... = R_{\rm eq} \cdot I_{\rm res}$.

3. Therefore, we get with the conductance: ${{I_1} \over {G_1}} = {{I_2} \over {G_2}}= ... = {{I_{\rm eq}} \over {G_{\rm res}}}$

Kirchhoff's Voltage Law

Also, Kirchhoff's voltage law (also called: Kirchhoff's second law, or loop law) describes in mathematical language another practical experience: Between two points $1$ and $2$ of a network, there is only one potential difference. Thus the potential difference is in particular independent of the way a network is traversed between the two points $1$ and $2$. This can be described by considering the meshes.

Proof of Kirchhoff's voltage law

If one expresses the voltage in Abbildung 17 by the potentials in the nodes, we get: $U_{12}= \varphi_1 - \varphi_2 $
$U_{23}= \varphi_2 - \varphi_3 $
$U_{34}= \varphi_3 - \varphi_4 $
$U_{41}= \varphi_4 - \varphi_1 $

If these voltages are added, this leads to Kirchhoff's voltage law.

$U_{12}+U_{23}+U_{34}+U_{41} = 0$

Series circuit of resistors

Using Kirchhoff's voltage law, the total resistance of a series circuit (in German: Reihenschaltung, see Abbildung 18) can be easily determined:

$U_1 + U_2 + ... + U_n = U_{\rm res}$

$R_1 \cdot I_1 + R_2 \cdot I_2 + ... + R_n \cdot I_n = R_{\rm eq} \cdot I $

Since in a series circuit, the current through all resistors must be the same - i.e. $I_1 = I_2 = ... = I$ - it follows that:

$R_1 + R_2 + ... + R_n = R_{\rm eq} = \sum_{x=1}^{n} R_x $

In general: The equivalent resistance of a series circuit is always greater than the greatest resistance.

Application

Kelvin-Sensing

Often resistors are used to measure a current $I$ via the voltage drop on the resistor $U = R \cdot I$. Applications include the measurement of motor currents in the range of $0.1 ... 500 ~\rm A$.
Those resistors are called shunt resistors and are commonly in the range of some $\rm m\Omega$. This measurement can be interfered by the resistor of the supply lines.

To get an accurate measurement often Kelvin sensing, also known as Four-terminal sensing or 4 wire sensing, is used. This is a method of measuring electrical resistance avoiding errors caused by wire resistances.
The simulation in Abbildung 19 shows such a setup.

Four-terminal sensing involves using:

• a pair of current leads or force leads (with the resistances $R_{\rm cl1}$ and $R_{\rm cl2}$) to supply current to the circuit and
• a pair of voltage leads or sense leads (with the resistances $R_{\rm vl1}$ and $R_{\rm vl2}$) to measure the voltage drop across the impedance to be measured.

The sense connections via the voltage leads are made immediately adjacent to the target impedance $R_{\rm s}$ at the device under test $\rm DUT$. By this, they do not include the voltage drop in the force leads or contacts.
Since almost no current flows to the measuring instrument, the voltage drop in the sense leads is negligible. This method can be a practical tool for finding poor connections or unexpected resistance in an electrical circuit.

2.5 Voltage Divider

The unloaded Voltage Divider

Especially the series circuit of two resistors $R_1$ and $R_2$ shall be considered now. This situation occurs in many practical applications e.g. in a potentiometer.

In Abbildung 21 this circuit is shown.

Via Kirchhoff's voltage law, we get

$\boxed{ {{U_1}\over{U}} = {{R_1}\over{R_1 + R_2}} \rightarrow U_1 = k \cdot U}$

The ratio $k={{R_1}\over{R_1 + R_2}}$ also corresponds to the position on a potentiometer.

The loaded Voltage Divider

If - in contrast to the abovementioned, unloaded voltage divider - a load $R_{\rm L}$ is connected to the output terminals (Abbildung 23), this load influences the output voltage.

A circuit analysis yields:

$ U_1 = \LARGE{{U} \over {1 + {{R_2}\over{R_L}} + {{R_2}\over{R_1}} }}$

or on a potentiometer with $k$ and the sum of resistors $R_{\rm s} = R_1 + R_2$:

$ U_1 = \LARGE{{k \cdot U} \over { 1 + k \cdot (1-k) \cdot{{R_{\rm s}}\over{R_{\rm L}}} }}$

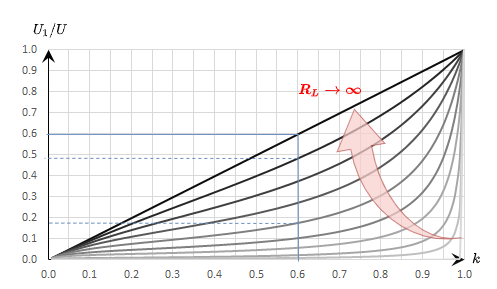

Abbildung 24 shows the ratio of the output voltage $U_1$ to the input voltage $U$ (y-axis), in relation to the ratio $k={{R_1}\over{R_1 + R_2}}$. In principle, this is similar to Abbildung 21, but here it has another dimension: multiple graphs are plotted. These differ by the ratio ${{R_{\rm s}}\over{R_{\rm L}}}$.

What does this diagram tell us? This shall be investigated by an example. First, assume an unloaded voltage divider with $R_2 = 4.0 ~\rm k\Omega$ and $R_1 = 6.0 ~\rm k\Omega$, and an input voltage of $10~\rm V$. Thus $k = 0.60$, $R_s = 10~\rm k\Omega$ and $U_1 = 6.0~\rm V$. Now this voltage divider is loaded with a load resistor. If this is at $R_{\rm L} = R_1 = 10 ~\rm k\Omega$, $k$ reduces to about $0.48$ and $U_1$ reduces to $4.8~\rm V$ - so the output voltage drops. For $R_{\rm L} = 4.0~\rm k\Omega$, $k$ becomes even smaller to $k=0.375$ and $U_1 = 3.75~\rm V$. If the load $R_{\rm L}$ is only one-tenth of the resistor $R_{\rm s}=R_1 + R_2$, the result is $k = 0.18$ and $U_1 = 1.8~\rm V$. The output voltage of the unloaded voltage divider ($6.0~\rm V$) thus became less than one-third.

What is the practical use of the (loaded) voltage divider?
Here are some examples:

• Voltage dividers are in use for controlling the output of power supply ICs (see Voltage Dividers in Power Supplies). In order not to create a loaded voltage divider, a range for the resistance is given here.
• Another „invisible“ voltage divider is for example in the electrical system of a car. As we will learn in the next chapters, voltage supplies have internal resistance (and therefore batteries, too). The other consumer in the car also represents a resistance. By this, the electrical system states an unloaded voltage divider. Given another, additional low-resistance load (e.g. the spark or the starter motor of the starter system) one can understand that there will be a voltage drop when starting the car.

2.6 Circuits with three Connections

At the beginning of the chapter, an example of a network was shown (Abbildung 1). Here, however, one does not come directly to the solution with the set of nodes and loops. It is visible, that there are many $\Delta$-shaped (or triangle-shaped) loops resp. $\rm Y$-shaped (or star-shaped) nodes, see Abbildung 28. A method to calculate these will be discussed in more detail now.

First of all a summary of the previous findings: Using the node and loop rule it became clear that an equivalent resistance can be determined from a series as well as from a parallel circuit. If one considers the equivalent resistance as a black box - i.e. the internals are unknown - it could be interpreted by both types of a circuit (Abbildung 29).

Now how does this help us in the case of a $\Delta$-load (= triangular loop)?

Also in this case one can provide a black box. However, this should always behave in the same way as the $\Delta$-load, i.e. any voltages applied should produce the same currents as the known structure.
In other words: The resistances measured between two terminals must be identical for the black box and for the known circuit.

For this purpose, the different resistances between the individual nodes $\rm a$, $\rm b$, and $\rm c$ are now to be considered, see Abbildung 30. The aim is to find out how a $\Delta$-load (triangular circuit) can be developed from a $\rm Y$-load (star circuit) and vice versa.

Delta Circuit

In the delta circuit, the 3 resistors $R_{\rm ab}^1$, $R_{\rm bc}^1$, and $R_{\rm ca}^1$ are connected in a loop. At the connection of the resistors, an additional terminal is implemented.
The labeling with a superscript $\square^1$ refers to the three resistors in the next paragraphs.

For the measurable resistance between two terminals (e.g. $R_{\rm ab}$ between $\rm a$ and $\rm b$), the third terminal (here: $\rm c$) is considered as not connected to anything outside. This results in a parallel circuit of the direct delta resistor $R_{\rm ab}^1$ with the series connection of the other two delta resistors $R_{\rm ca}^1 + R_{\rm bc}^1$:

$R_{\rm ab} = R_{\rm ab}^1 || (R_{\rm ca}^1 + R_{\rm bc}^1) $
$R_{\rm ab} = {{R_{\rm ab}^1 \cdot (R_{\rm ca}^1 + R_{\rm bc}^1)}\over{R_{\rm ab}^1 + (R_{\rm ca}^1 + R_{\rm bc}^1)}} = {{R_{\rm ab}^1 \cdot (R_{\rm ca}^1 + R_{\rm bc}^1)}\over{R_{\rm ab}^1 + R_{\rm ca}^1 + R_{\rm bc}^1}} $

The same applies to the other connections. This results in:

\begin{align*} R_{\rm ab} = {{R_{\rm ab}^1 \cdot (R_{\rm ca}^1 + R_{\rm bc}^1)}\over{R_{\rm ab}^1 + R_{\rm ca}^1 + R_{\rm bc}^1}} \\ R_{\rm bc} = {{R_{\rm bc}^1 \cdot (R_{\rm ab}^1 + R_{\rm ca}^1)}\over{R_{\rm ab}^1 + R_{\rm ca}^1 + R_{\rm bc}^1}} \\ R_{\rm ca} = {{R_{\rm ca}^1 \cdot (R_{\rm bc}^1 + R_{\rm ab}^1)}\over{R_{\rm ab}^1 + R_{\rm ca}^1 + R_{\rm bc}^1}} \tag{2.6.1} \end{align*}

Star Circuit

Given the idea, that the star circuit shall behave equally to the delta circuit, the resistance measured between the terminals must be similar. Also in the star circuit, 3 resistors are connected, but now in a star (or $\rm Y$) shape. The star resistors are all connected with another node $0$ in the middle: $R_{\rm a0}^1$, $R_{\rm b0}^1$ and $R_{\rm c0}^1$.

Again, the procedure is the same as for the delta connection: the resistance between two terminals (e.g. $\rm a$ and $\rm b$) is determined, and the further terminal ($\rm c$) is considered to be open. The resistance of the further terminal ($R_{\rm c0}^1$) is only connected at one node. Therefore, no current flows through it - it is thus not to be considered. It results in:

\begin{align*} R_{\rm ab} = R_{\rm a0}^1 + R_{\rm b0}^1 \\ R_{\rm bc} = R_{\rm b0}^1 + R_{\rm c0}^1 \\ R_{\rm ca} = R_{\rm c0}^1 + R_{\rm a0}^1 \tag{2.6.2} \end{align*}

From equations $(2.6.1)$ and $(2.6.2)$ we get:

\begin{align} R_{\rm ab} = {{R_{\rm ab}^1 \cdot (R_{\rm ca}^1 + R_{\rm bc}^1)}\over{R_{\rm ab}^1 + R_{\rm ca}^1 + R_{\rm bc}^1}} = R_{\rm a0}^1 + R_{\rm b0}^1 \tag{2.6.3} \end{align} \begin{align} R_{\rm bc} = {{R_{\rm bc}^1 \cdot (R_{\rm ab}^1 + R_{\rm ca}^1)}\over{R_{\rm ab}^1 + R_{\rm ca}^1 + R_{\rm bc}^1}} = R_{\rm b0}^1 + R_{\rm c0}^1 \tag{2.6.4} \end{align} \begin{align} R_{\rm ca} = {{R_{\rm ca}^1 \cdot (R_{\rm bc}^1 + R_{\rm ab}^1)}\over{R_{\rm ab}^1 + R_{\rm ca}^1 + R_{\rm bc}^1}} = R_{\rm c0}^1 + R_{\rm a0}^1 \tag{2.6.5} \end{align}

Equations $(2.6.3)$ to $(2.6.5)$ can now be cleverly combined so that there is only one resistor on one side.
A variation is to write the formulas as ${{1}\over{2}} \cdot \left( (2.6.3) + (2.6.4) - (2.6.5) \right)$ or ${{1}\over{2}} \cdot \left(R_{\rm ab} + R_{\rm bc} - R_{\rm ca}\right)$ to combine. This gives $R_{\rm b0}^1$

\begin{align*} {{1}\over{2}} \cdot \left( {{R_{\rm ab}^1 \cdot (R_{\rm ca}^1 + R_{\rm bc}^1)}\over{R_{\rm ab}^1 + R_{\rm ca}^1 + R_{\rm bc}^1}} + {{R_{\rm bc}^1 \cdot (R_{\rm ab}^1 + R_{\rm ca}^1)}\over{R_{\rm ab}^1 + R_{\rm ca}^1 + R_{\rm bc}^1}} - {{R_{\rm ca}^1 \cdot (R_{\rm bc}^1 + R_{\rm ab}^1)}\over{R_{\rm ab}^1 + R_{\rm ca}^1 + R_{\rm bc}^1}} \right) &= {{1}\over{2}} \cdot \left( R_{\rm a0}^1 + R_{\rm b0}^1 + R_{\rm b0}^1 + R_{\rm c0}^1 - R_{\rm c0}^1 - R_{\rm a0}^1 \right) \\ {{1}\over{2}} \cdot \left( {{R_{\rm ab}^1 \cdot (R_{\rm ca}^1 + R_{\rm bc}^1)} + {R_{\rm bc}^1 \cdot (R_{\rm ab}^1 + R_{\rm ca}^1)} - {R_{\rm ca}^1 \cdot (R_{\rm bc}^1 + R_{\rm ab}^1)}\over{R_{\rm ab}^1 + R_{\rm ca}^1 + R_{\rm bc}^1}} \right) &= {{1}\over{2}} \cdot \left( 2 \cdot R_{\rm b0}^1 \right) \\ {{1}\over{2}} \cdot \left( {{R_{\rm ab}^1 R_{\rm ca}^1 + R_{\rm ab}^1 R_{\rm bc}^1 + R_{\rm bc}^1 R_{\rm ab}^1 + R_{\rm bc}^1 R_{\rm ca}^1 - R_{\rm ca}^1 R_{\rm bc}^1 - R_{\rm ca}^1 R_{\rm ab}^1}\over{R_{\rm ab}^1 + R_{\rm ca}^1 + R_{\rm bc}^1}} \right) &= R_{\rm b0}^1 \\ {{1}\over{2}} \cdot \left( {{ 2 \cdot R_{\rm ab}^1 R_{\rm bc}^1 }\over{R_{\rm ab}^1 + R_{\rm ca}^1 + R_{\rm bc}^1}} \right) &= R_{\rm b0}^1 \\ {{ R_{\rm ab}^1 R_{\rm bc}^1 }\over{R_{\rm ab}^1 + R_{\rm ca}^1 + R_{\rm bc}^1}} &= R_{\rm b0}^1 \\ \end{align*}

Similarly, one can resolve to $R_{\rm a0}^1$ and $R_{\rm c0}^1$, and with a slightly modified approach to $R_{\rm ab}^1$, $R_{\rm bc}^1$ and $R_{\rm ca}^1$.

Y-Δ-Transformation

2.7 Circuits with multiple Resistors

In this subchapter, a methodology is discussed, which should help to reshape circuits. In subchapter 2.6 Star-Delta-Circuit towards the end a network was already transformed in a way, that it does not contain triangular meshes anymore. Now, this procedure shall be systematized. Starting points are tasks, where for a resistor network the total resistance, total current, or total voltage has to be calculated.

Simple Example

An example of such a circuit is given in Abbildung 32. Here $I_0$ is wanted. This current can be found by the (given) voltage $U_0$ and the total resistance between the terminals $\rm a$ and $\rm b$. So we are looking for $R_{\rm ab}$.

As already described in the previous subchapters, partial circuits can also be converted into equivalent resistors step by step. It is important to note that these partial circuits for conversion into equivalent resistors may only ever have two connections (= two nodes to the „outside world“).

Abbildung 33 shows the step-by-step conversion of the equivalent resistors in this example.
As a result of the equivalent resistance one gets:

\begin{align*} R_{\rm eq} = R_{12345} &= R_{12}||R_{345} = R_{12}||(R_3+R_{45}) = (R_1||R_2)||(R_3+R_4||R_5) \\ &= {{ {{R_1 \cdot R_2}\over{R_1 + R_2}} \cdot (R_3 + {{R_4 \cdot R_5}\over{R_4 + R_5}}) }\over{ {{R_1 \cdot R_2}\over{R_1 + R_2}} +R_3 + {{R_4 \cdot R_5}\over{R_4 + R_5}} }} \quad \quad \quad \quad \quad \quad \bigg\rvert \cdot{{(R_1 + R_2) \cdot (R_4 + R_5)}\over{(R_1 + R_2) \cdot (R_4 + R_5)}} \\ &= {{ R_1 \cdot R_2 \cdot (R_3 + {{R_4 \cdot R_5}\over{R_4 + R_5}}) \cdot (R_4 + R_5) } \over { R_1 \cdot R_2\cdot(R_4 + R_5) +R_3 + R_4 \cdot R_5 \cdot (R_1 + R_2)}} \\ &= {{ R_1 \cdot R_2 \cdot (R_3 \cdot (R_4 + R_5) + R_4 \cdot R_5) } \over { R_1 \cdot R_2\cdot(R_4 + R_5) +R_3 + R_4 \cdot R_5 \cdot (R_1 + R_2)}} \\ \end{align*}

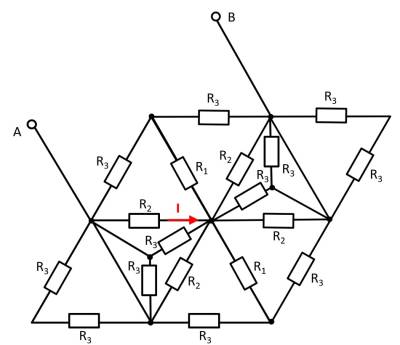

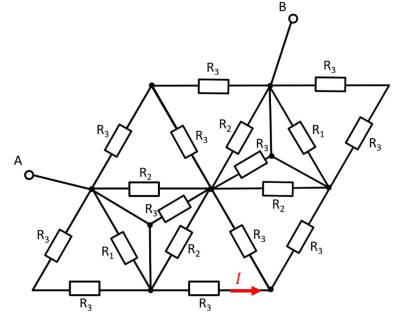

Example of Δ-Y-Transformation

With the Δ-Y-transformation now also the initial example can be transformed. For more complicated circuits, the repeated Δ-Y-transformation with a subsequent combining of the resistors is useful, until the resulting circuit is easily calculable with node and mesh theorem (Abbildung 34). Here a calculation is omitted - it is recommended to calculate here with intermediate results for the transformed resistors.
