5 Magnetic Circuits

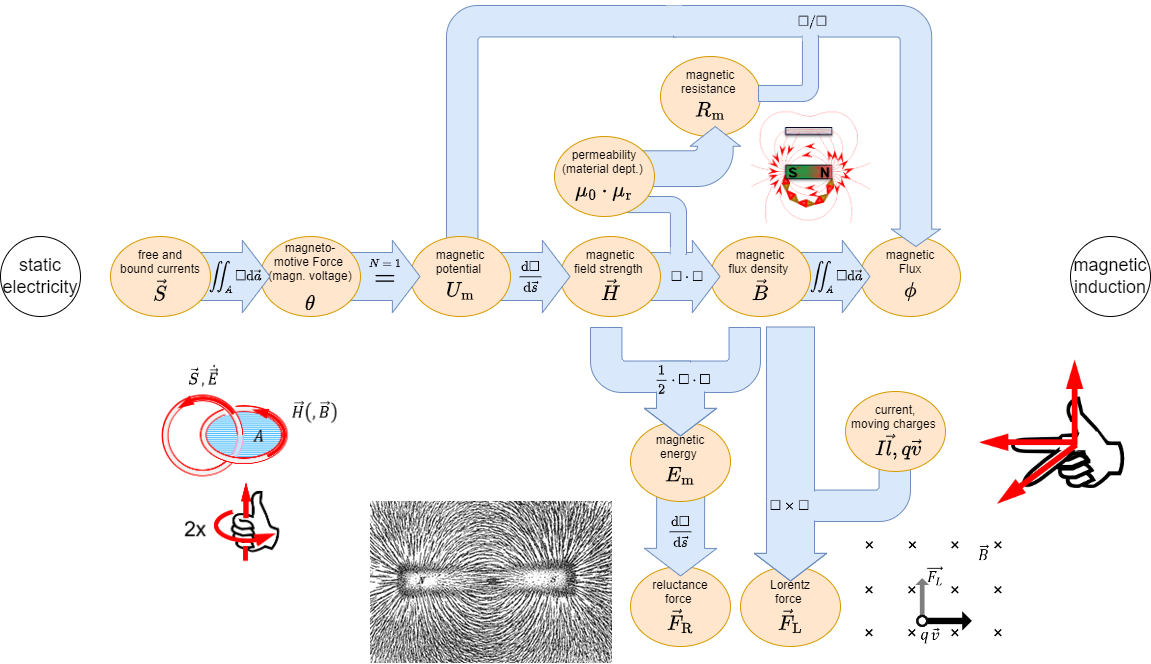

In the previous chapters, we got accustomed to the magnetic field. During this path, some similarities from the magnetic field to the electric circuit appeared (see Abbildung 1).

In this chapter, we will investigate, how far we come with such an analogy and where it can be practically applied.

5.1 Linear Magnetic Circuits

For the upcoming calculations, the following assumptions are made

1. The relationship between $B$ and $H$ is linear: $B = \mu \cdot H$
   This is a good estimation when the magnetic field strength lays well below saturation
2. There is no stray field leaking out of the magnetic field conducting material.
3. The fields inside of airgaps are homogeneous. This is true for small air gaps.

One can calculate a lot of simple magnetic circuits when these assumptions and focusing on the average field line are applied.

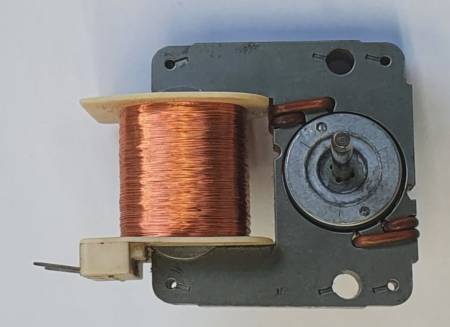

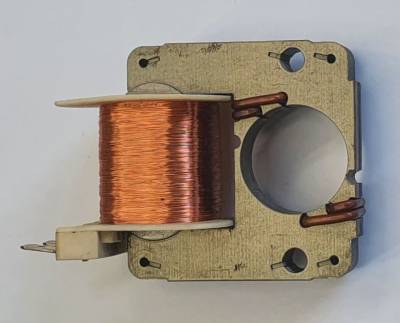

Two simple magnetic circuits are shown in Abbildung 3: They consist of

• a current-carrying coil
• a ferrite core
• an airgap (in picture (2) ).

These three parts will be investigated shortly:

Current-carrying Coil

For the magnetic circuit, the coil is parameterized only by:

• its number of windings $N$ and
• the passing current $i$.

These parameters lead to the magnetic voltage $\theta = N\cdot i$.

Ferrite Core

• The core is assumed to be made of ferromagnetic material.
• Therefore, the relative permeability in the core is much larger than in air ($\mu_{\rm r,core}\gg 1$).
• The ferrite core is also filling the inside of the current-carrying coil.
• The ferrite core conducts the magnetic flux around the magnetic circuit (and by this: also to the airgap)

Airgap

• The air gap interrupts the ferrite core.
• The width of the air gap is small compared to the dimensions of the cross-section of the ferrite core.
• The field in the air gap can be used to generate (mechanical) effects within the air gap.
  An example of this can be the force onto a permanent magnet (see Abbildung 3 (3)).

With the above-mentioned assumptions the magnetic flux $\Phi$ must remain constant along the ferrite core, so $\Phi_{\rm core}=\rm const.$.
Since the magnetic field lines neither show sources nor sinks, also the flux passing over to the airgap must be $\Phi_{\rm airgap}=\Phi_{\rm core}=\rm const.$ This can also be seen in Abbildung 4 (1) ).
A different view of this is the closed surface $\vec{A}$ (Abbildung 4 (2)): Based on the examination in Recap of magnetic Field we know that the flux into the volume must be equal the flux out of the volume, or $\Phi_{\rm m} = \iint_{A} \vec{B} \cdot d \vec{A} = 0$.

The relationship $B=\mu \cdot H$, and $\mu_{\rm core}\gg\mu_{\rm airgap}$ lead to the fact that the ${H}$-Field must be much stronger within the airgap (Abbildung 4 (3)).

Magnetic Circuit in a Formula

Therefore, the following formula is given \begin{align*} \Phi_{\rm m} &= &\iint_A &\vec{B} \cdot d \vec{A} &= &{\rm const.} \\ &= & & B \cdot A &= &{\rm const.} \\ &= & &B_{\rm core} \cdot A_{\rm core} &= & B_{\rm airgap} \cdot A_{\rm airgap} = {\rm const.} \\ \end{align*}

The assumption, that there is that the field inside of airgap is homogeneous and there is no stray field lead to the fact, that $A_{\rm core} = A_{\rm airgap}$.
Therefore: \begin{align*} B_{\rm core} &= &B_{\rm airgap} = B \\ \mu_0 \mu_{\rm r,core} H_{\rm core} &= &\mu_0 \mu_{\rm r,airgap} H_{\rm airgap} = {{\Phi}\over{A}} \tag{5.2.1} \end{align*}

Besides this, the magnetic field strength $H$ along one field line is directly given by: \begin{align*} \theta = N \cdot i &= \int_s \vec{H} d\vec{s} = \\ &= \int_{\rm core} \vec{H} d\vec{s} + \int_{\rm airgap} \vec{H} d\vec{s} \\ \end{align*}

With the assumtion of a linear and homogeneous $B$-Field and the width $\delta$ of the airgap, this leads to: \begin{align*} \theta = {H}_{\rm core} l_{\rm core} + {H}_{\rm airgap} \delta \tag{5.2.2} \end{align*}

With the prevoius formula $5.2.1$, this gets to: \begin{align*} \theta &= {{B}\over{\mu_0 \mu_{\rm r,core}}} l_{\rm core} + {{B}\over{\mu_0 \mu_{\rm r,airgap}}} \delta \\ &= {{\Phi \cdot l_{\rm core}}\over{A \cdot \mu_0 \mu_{\rm r,core}}} + {{\Phi \cdot \delta}\over{A \cdot \mu_0 \mu_{\rm r,airgap}}} \\ &= {{1}\over{\mu_0 \mu_{\rm r,core}}}{{l_{\rm core}}\over{A}} \cdot \Phi + {{1}\over{\mu_0 \mu_{\rm r,airgap}}}{{\delta}\over{A}} \cdot \Phi \tag{5.2.3} \end{align*}

Comparing the formula $5.2.3$ with the ohmic resistance and resistivity of two resistors in series shows something interesting: \begin{align*} u &= &R_1 \cdot &i &+ &R_2 \cdot i \\ &= &\rho {{l_1}\over{A_1}} \cdot &i &+ &\rho {{l_2}\over{A_2}} \cdot i \end{align*}

This leads to:

• The magnetic voltage $\theta$ acts like the electic voltage $u$,
  the magnetic flux $\Phi$ like the current $i$.
• The linear relationship $\theta = f(\Phi)$ is also called Hopkinson's Law.

Application and Limitations of the Circuit Interpretation

The results are only allowed as a first approximation. The following table shows the contrast between the electric and magnetic fields:

5.2 Non-linear magnetic Circuits

not included in the present script

5.3 Mutual Induction and Coupling

Imagine charging your phone wirelessly by simply placing it on a charging pad. This seamless experience is made possible by the fascinating phenomenon of mutual induction and coupling between two coils.

This situation is depicted in Abbildung 9: When an alternating current flows through one coil (Coil $1$), it creates a time-varying magnetic field that induces a voltage in the nearby coil (Coil $2$), even though they are not physically connected. This mutual influence is governed by the principle of electromagnetic induction.

The key factor determining the strength of mutual induction is the mutual inductance ($M$) between the coils. It quantifies the magnetic flux linkage and depends on factors like the number of turns, current, and relative orientation of the coils.

While geometric properties play a role, the fundamental principle can be described using electric properties alone, making mutual induction a versatile concept with numerous applications, including:

• Wireless power transfer
• Transformers
• Inductive coupling in communication systems
• Inductive sensors

As we explore this chapter, we'll delve into the mathematical models, equations, and practical considerations of mutual induction and coupling, unlocking a world of innovative technologies that shape our modern lives. We explicitly try to answer the following questions:

• Which effect do the coils have on each other?
• Can we describe the effects with mainly electric properties (i.e. no geometric properties)

Effect of Coils on each other

1. Windings $N_1$ of coil $1$ gets feed with current $i_1$.
2. Coil $1$ generates change in flux $\Phi_{11}$
3. Coil $2$ gets passed by part of the flux ($\Phi_{21}$)
4. Stray flux $\Phi_{\rm S1}$ takes not part in coupling

• $\rightarrow$ Coils are magnetically coupled:
  Flux $\Phi_{11}$ of coil $1$ gets divided into flux $\Phi_{21}$ in coil $2$ and stray flux $\Phi_{\rm S1}$ not passing coil $2$:

  $\Phi_{11} = \Phi_{21} + \Phi_{\rm S1}$

• Induced voltage in coil $2$:

  $ u_{\rm ind,2} = -{{\rm d}\over{{\rm d}t}}\Psi_{21} $
  $\quad\quad = -N_2 \cdot {{\rm d}\over{{\rm d}t}}\Phi_{21} $

• Similar effect on coil $1$ due to a current $i_2$ through coil $2$:

  $\Phi_{22} = \Phi_{12} + \Phi_{\rm S2}$

  $ u_{\rm ind,1} = -N_1 \cdot {{\rm d}\over{{\rm d}t}}\Phi_{12} $

Linked Fluxes

For the single coil, we got the relationship between the linked flux $\Psi$ and the current $i$ as: $\Psi = L \cdot i$.
Now the coils also interact with each other. This must also be reflected in the relationship $\Psi_1 = f(i_1, i_2)$, $\Psi_2 = f(i_1, i_2)$: \begin{align*} \Psi_1 &= &\Psi_{11} &+ \Psi_{12} \\ \Psi_2 &= &\Psi_{22} &+ \Psi_{21} \\ \\ \Psi_1 &= &L_{11} \cdot i_1 &+ M_{12} \cdot i_2 \\ \Psi_2 &= &L_{22} \cdot i_2 &+ M_{21} \cdot i_1 \\ \end{align*}

With

• $L_{11}$ and $L_{22}$ as the self induction
• $M_{12}$ and $M_{21}$ as the mutual induction

The formula can also be described as:

The view of the magnetic flux is advantageous when effects like an acting Lorentz force is of interest. However, more often the coils couple electric circuits, like in a transformer or a wireless charger. Here, the effect on the circuits is of interest. This can be calculated with the induced electric voltages $u_{\rm ind,1}$ and $u_{\rm ind,2}$ in each circuit. They are given by the formula $u_{{\rm ind},x} = -{\rm d}\Psi_x /{\rm d}t$:

\begin{align*} \left( \begin{array}{c} u_1 \\ u_2 \end{array} \right) &= -{{\rm d}\over{{\rm d}t}} \left( \begin{array}{c} \Psi_1 \\ \Psi_2 \end{array} \right) \\ &= -\left( \begin{array}{c} L_{11} & M_{12} \\ M_{21} & L_{22} \end{array} \right) \cdot \left( \begin{array}{c} {{\rm d}\over{{\rm d}t}} i_1 \\ {{\rm d}\over{{\rm d}t}}i_2 \end{array} \right) \end{align*}

The main question is now: How do we get $L_{11}$, $M_{12}$, $L_{22}$, $M_{21}$?

Magnetic Circuit with two Sources

To get the self-induction and mutual induction of two interacting coils, we are going to investigate two coils on an iron core with a middle leg (see Abbildung 10).
There the stray flux of the previous situation is only located in the middle leg. This also means, that there is no stray flux outside of the iron core.

The Abbildung 10 shows the fluxes on each part. The black dots near the windings mark the direction of the windings, and therefore the sign of the generated flux.
All the fluxes caused by currents flowing into the marked pins are summed up positively in the core.
When there is a current flowing into a non-marked pin, its flux has to be subtracted from the others.

To get $L_{11}$ and $L_{22}$, we look back to the inductance $L$ of a long coil with the length $l$.
This was given in the chapter Self-Induction as

\begin{align*} L &= {{\Psi}\over{i}} \\ L &= \mu_0 \mu_{\rm r} \cdot N^2 \cdot {{A} \over {l}} \\ \end{align*}

In this case, $\Psi$ was the flux through the coil generated from the coil itself - here $L_{11}$ and $L_{22}$.
Comparing this formula with the magnetic resistance $R_{\rm m} = {{1}\over{\mu_0 \mu_{\rm r}}} {{l}\over{A}}$ of the coil, one can conclude:

\begin{align} L = {{N^2 }\over {R_{\rm m,coil}}} \end{align}

Important here is, that we assumed no stray field. When taking this into account for calculating the self-induction the magnetic resistance $R_{\rm m,coil}$ ends op to be the resistance of the magnetic circuit, seen by the magnetic voltage source!

\begin{align} \boxed{L = {{N^2 }\over {R_{\rm m1}}}} \end{align}

The magnetic resistance $R_{\rm m1}$ in the example Abbildung 10 is $R_{\rm m1} = R_{\rm m,11} + (R_{\rm m,ss}||R_{\rm m,22})$. Based on this formula, the self-inductions $L_{11}$ and $L_{22}$ can be written with the magnetic resistances of the coils as:

\begin{align*} L_{11} &= {{N_1^2 }\over {R_{\rm m1}}} \\ L_{22} &= {{N_2^2 }\over {R_{\rm m2}}} \end{align*}

To get the effect of the mutual induction, a coupling coefficient $k$ is introduced. $k_{21}$ describes how much of the flux from coil $1$ is acting on coil $2$ (similar for $k_{12}$):

\begin{align*} k_{21} = \pm {{\Phi_{21}}\over{\Phi_{11}}} \\ \end{align*}

The sign of $k_{21}$ depends on the direction of $\Phi_{21}$ relative to $\Phi_{22}$! If the directions are the same, the positive sign applies, if the directions are opposite, the minus sign applies.

When $k_{21}=+100~\%$, there is no flux in the middle leg but only in the second coil and in the same direction as the flux that originates from the second coil.
When $k_{21}=-100~\%$, there is no flux in the middle leg but only in the second coil and in the opposite direction as the flux that originates from the second coil.
For $k_{21}=0~\%$ all the flux is in the middle leg circumventing the second coil, i.e. there is no coupling.

The mutual induction $M_{21}$ can be calculated as the fraction of the linked flux $\Psi_{11}$ in coil $2$ based on the current $i_1$ from the coil $1$ :

\begin{align*} M_{21} &= {{\Psi_{21}} \over{i_1}} \\ &= {{N_2 \cdot \Phi_{21}}\over{i_1}} \\ &= {{N_2 \cdot k_{21} \cdot \Phi_{11}}\over{i_1}} \\ &= {{N_2}\over{N_1}}k_{21} \cdot {{\Psi_{11}}\over{i_1}} \\ &= {{N_2}\over{N_1}}k_{21} \cdot L_{11} \\ &= {{N_2}\over{N_1}}k_{21} \cdot {{N_1^2 } \over {R_{\rm m1}}} \\ &= k_{21} \cdot {{N_1 \cdot N_2 }\over {R_{\rm m1}}} \\ \end{align*}

Note, that also $M_{21}$ and $M_{12}$ can be either positive or negative, depending on the sign of the coupling coefficients.

The formula is finally: \begin{align*} \left( \begin{array}{c} \Psi_1 \\ \Psi_2 \end{array} \right) = \left( \begin{array}{c} {{N_1^2}\over{R_{\rm m1}}} & k_{12}\cdot{{N_1 \cdot N_2}\over{R_{\rm m2}}} \\ k_{21}\cdot{{N_1 \cdot N_2}\over{R_{\rm m1}}} & {{N_2^2}\over{R_{\rm m2}}} \end{array} \right) \cdot \left( \begin{array}{c} i_1 \\ i_2 \end{array} \right) \end{align*}

For most of the applications the induction matrix has to be symmetric¹⁾.
Therefore, the following applies:

• In General: the mutual inductance $M$ is: $M = \sqrt{M_{12}\cdot M_{21}} = k \cdot \sqrt {L_{11}\cdot L_{22}}$
• For symmetric induction matrix: The mutual inductances are equal: $M_{12} = M_{21} = M$
• The resulting total coupling $k$ is given as \begin{align*} k = \rm{sgn}(k_{12}) \sqrt{k_{12}\cdot k_{21}} \end{align*}

Effects in the electric Circuits

• Whenever two coils are magnetically coupled, not only the self-induction $L$ but also the mutual induction $M$ applies.
• Based on the currents $i_1$, $i_2$ in the two circuits, the induced voltages are given by:

\begin{align*} u_1 &= L_{11} \cdot {{{\rm d}i_1}\over{{\rm d}t}} &+ M \cdot {{{\rm d}i_2}\over{{\rm d}t}} & \\ u_2 &= M \cdot {{{\rm d}i_1}\over{{\rm d}t}} &+ L_{22} \cdot {{{\rm d}i_2}\over{{\rm d}t}} & \\ \end{align*}

It is important to consider the polarity of the fluxes for the calculation in circuits (see Abbildung 15). The sign of the mutual induction is influenced by

• the direction of the windings, and
• the orientation/counting of the current in the circuit.

positive Polarity

The polarity is positive when both currents either flow into or out of the dotted pin (see Abbildung 16).

Abb. 16: Example Circuits with positive Polarity

In this case, the mutual induction is positiv $(M>0)$.

The formula of the shown circuitry is then: \begin{align*} u_1 &= R_1 \cdot i_1 &+ L_{11} \cdot {{{\rm d}i_1}\over{{\rm d}t}} &+ M \cdot {{{\rm d}i_2}\over{{\rm d}t}} & \\ u_2 &= R_2 \cdot i_2 &+ L_{22} \cdot {{{\rm d}i_2}\over{{\rm d}t}} &+ M \cdot {{{\rm d}i_1}\over{{\rm d}t}} & \\ \end{align*}

negative Polarity

The polarity is negative when only one current either flows into the dotted pin and the other one out of the dotted pin (see Abbildung 17).

In this case, the mutual induction is negativ $(M<0)$*.

The formula of the shown circuitry is then: \begin{align*} u_1 &= R_1 \cdot i_1 &+ L_{11} \cdot {{{\rm d}i_1}\over{{\rm d}t}} & + M \cdot {{{\rm d}i_2}\over{{\rm d}t}} & \\ u_2 &= R_2 \cdot i_2 &+ L_{22} \cdot {{{\rm d}i_2}\over{{\rm d}t}} & + M \cdot {{{\rm d}i_1}\over{{\rm d}t}} & \\ \end{align*}

5.4 Magnetic Energy

The magnetic field of a coil stores magnetic energy. The energy transfer from the electric circuit to the magnetic field is also the cause of the „current dampening“ effect of the inductor. The energetic turnover for charging an conductor from $i(t_0=0)=0$ to $i(t_1)=I$ is given by:

\begin{align*} W_m = \int_0^\infty u(t)\cdot i(t) {\rm d}t \end{align*}

With $u_L = L \cdot {\rm d}i/{\rm d}t$, this becomes:

\begin{align*} W_{\rm m} &= \int_0^\infty L\cdot {{{\rm d}i}\over{{\rm d}t}}\cdot i(t) {\rm d}t \\ &= \int_0^\infty L\cdot i(t) {\rm d}i \\ &= L\cdot \int_0^\infty i(t) {\rm d}i \\ &= L\cdot \left[ {{1}\over{2}}i^2\right]_0^I \\ \boxed{W_m = {{1}\over{2}}L\cdot I^2 } \end{align*}

magnetic Energy of a magnetic Circuit

With this formula also the stored energy in a magnetic circuit can be calculated. For this, the formula be rewritten by the properties linked flux $\Psi = N \cdot \Phi = L \cdot I$ and magnetic voltage $\theta=N \cdot I = \Phi \cdot R_{\rm m}$ of the magnetic circuit: \begin{align*} \boxed{W_{\rm m} = {{1}\over{2}} \Psi \cdot I = {{1}\over{2}} {{\Psi^2}\over{L}}= {{1}\over{2}}{{\Phi^2 }\over{N^2 \cdot L}} = {{1}\over{2}} \Phi^2 \cdot R_{\rm m} = {{1}\over{2}}{{\theta^2 }\over{R_{\rm m}}}} \end{align*}

magnetic Energy of a toroid Coil

The formula can also be used for calculating the stored energy of a toroid coil with $N$ windings, the cross-section $A$, and an average length $l$ of a field line. By this, the following formulas can be used: \begin{align*} \theta = H \cdot l = N \cdot I \\ \Phi = B \cdot A \end{align*}

With the above-mentioned formulas of the magnetic circuit, we get: \begin{align*} W_{\rm m} &= {{1}\over{2}} \Psi \cdot I \\ &= {{1}\over{2}}N \cdot B \cdot A \cdot {{H \cdot l}\over{N}} \\ &= {{1}\over{2}}B \cdot H \cdot A \cdot l \\ \end{align*} \begin{align*} \boxed{W_{\rm m} = {{1}\over{2}}B\cdot H \cdot V} \end{align*}

The magnetic energy density $w_{\rm m}$ can therefore be calculated as: \begin{align*} w_{\rm m} &= {{W_{\rm m}}\over{V}} \\ &= {{1}\over{2}} B \cdot H \\ \end{align*}

This formula is also true for other types of coils.

generalized magnetic Energy

The general term to find the magnetic energy (e.g. for inhomogeneous magnetic fields) is given by \begin{align*} W_{\rm m} &= \iiint_V{w_{\rm m} {\rm d}V} \\ &= \iiint_V{\vec{B}\cdot \vec{H} {\rm d}V} \end{align*}

Application of the magnetic Energy

The circuit shown in Abbildung 21 shall now be investigated. The inductor shall be a toroid coil with $N$ windings, the cross-section $A$, and an average length $l$ of a field line.

The Kirchhoff mesh law leads to:

\begin{align*} u_{\rm s} = u_R + u_L \\ u_{\rm s} = R \cdot i + N {{{\rm d}\Phi}\over{{\rm d}t}} \end{align*}

Multiplying with $i$ and with $dt$ we get the principle of conservation of energy $dw = u \cdot i \cdot {\rm d}t$ for each small time step.

\begin{align*} u_{\rm s} \cdot i \cdot dt &= R \cdot i^2 \cdot {\rm d}t & + N {{{\rm d}\Phi}\over{dt}} \cdot i \cdot {\rm d}t & \\ dW &= {\rm d}W_R & + {\rm d}W_m & \end{align*}

In this way, we get the magnetic energy as: \begin{align*} dW_{\rm m} &= N {{{\rm d}\Phi}\over{{\rm d}t}} \cdot i \cdot {\rm d}t \\ W_{\rm d} &= \int {\rm d}W_{\rm m} \\ &= N \int_0^t {{{\rm d}\Phi}\over{{\rm d}t}} \cdot i \cdot {\rm d}t \\ &= N \int_0^ {\Phi} i \cdot {\rm d}\Phi \\ \end{align*}

In a toroid coil with a given cross-section $A$ the flux change ${\rm d}\Phi$ can only be given as a change in the field $B$. Therefore, ${\rm d}\Phi = A \cdot {\rm d}B$. Additionally, we know that the magnetic voltage is given by $\theta(t) = N \cdot i = H(t) \cdot l$. Including this in the formula gives us:

\begin{align*} W_{\rm m} &= N \int_0^{B} I \cdot A \cdot {\rm d}B \\ &= \int_0^{B} H(B) \cdot l \cdot A \cdot {\rm d}B \\ &= V \int_0^{B} H(B) \cdot {\rm d}B \\ \end{align*}

We can conclude that the magnetic energy $W_{\rm m}$: $W_{\rm m}$ can be calculated from the $H$-$B$ curve by integrating the external magnetic field strength $H$ for each small step of the flux density ${\rm d}B$. This will be shown for the case of a linear magnetic behavior, a nonlinear behavior, and the situation with magnetic hysteresis shortly.

Circuit with linear magnetic Behavior

In Abbildung 22 the situation for a magnetic material with a linear relationship between $B$ and $H$ is shown. Given by the maximum current $I_{\rm max}$ the maximum field strength $H_{\rm max}$ can be derived. In the circuit in Abbildung 21, the inductor will experience increasing and decreasing current. Therefore, the $B$-$H$-curve gets passed through positive and negative values of $H$ and $H$ along the line of $B=\mu H$.

The situation for integrating the area in the graph is also shown: For each step ${\rm d}B$ the corresponding value of the field strength $H$ has to be integrated. For $B_0=0$ to $B=B_{\rm max}$ the magnetic energy is

\begin{align*} W_{\rm m} &= V\int_0^{B} H(B) \cdot {\rm d}B \\ &= V\int_0^{B} {{B }\over{\mu}} \cdot {\rm d}B \\ &= {{1}\over{2}} V {{B^2}\over{\mu}} \\ &= {{1}\over{2}} V \cdot B \cdot H \\ \end{align*}

This situation is a good approximation for air or non-magnetic materials. However, it does not work well for ferrite materials, since they show nonlinear behavior and hysteresis.

Circuit with nonlinear magnetic Behavior

In Abbildung 22 the situation for a magnetic material with a nonlinear relationship between $B$ and $H$ is shown.

In this case, the permeability $\mu_{\rm r}$ is not a constant but can be represented as a function: $\mu_{\rm r}= f(B)$. Here, the formula $W_{\rm m} = V\int_0^{B} H(B) \cdot {\rm d}B$ also applies - so the magnetic energy is again the area between the curve and the $B$-axis. As an example, the situation of the field strength $H(t_1)=H_1$ is shown. This shall be the field strength after magnetizing the ferrite material to $H_{\rm max}$ (yellow arrows) and then partly demagnetizing the material again (blue arrow). The magnetization corresponds to an energy intake to the magnetic field and the demagnetization to an energy outtake.

Moving along the $H$-$B$-curve, one can see, that the energy intake and outtake are the same when coming back to a start point. This means that the magnetization and demagnetization take place lossless in this example. This is a good approximation for magnetically soft materials, however, does not work for magnetically hard materials like a permanent magnet. Here, hysteresis also has to be considered.

Circuit with magnetic Hysteresis

Tasks

Further Information

An alternative interpretation of the magnetic circuits is the Gyrator–capacitor model. The big difference there is, that there the magnetic flux $\Phi$ is not interpreted as an analogy to the electric current $I$ but to the electric charge $Q$. This model can solve more questions, however, is a bit less intuitive based on this course and less commonly used compared to the Magnetic_circuit, which was also presented in this chapter.

Moving a Plate into an Air Gap

Switch Reluctance Motor

Based on a wikimedia image from Hamidreza D (CC-SA 4.0)

Resolver
